Over the last month or so got my 2012 Glint Wave Metallic wired up for the electronic accessories that I enjoy having on the bike. No farkles here.

I am a 25 year police officer and I enjoy having a police scanner on the motorcycle for something more to listen to while I am traveling (other than just music). Also picked up a Zumo 595LM for the greatly enhanced features as compared to the factory GPS system. I wanted to have all the audio play simultaneously through the AUX as I wanted the choice of hearing it out of the speakers or headset.

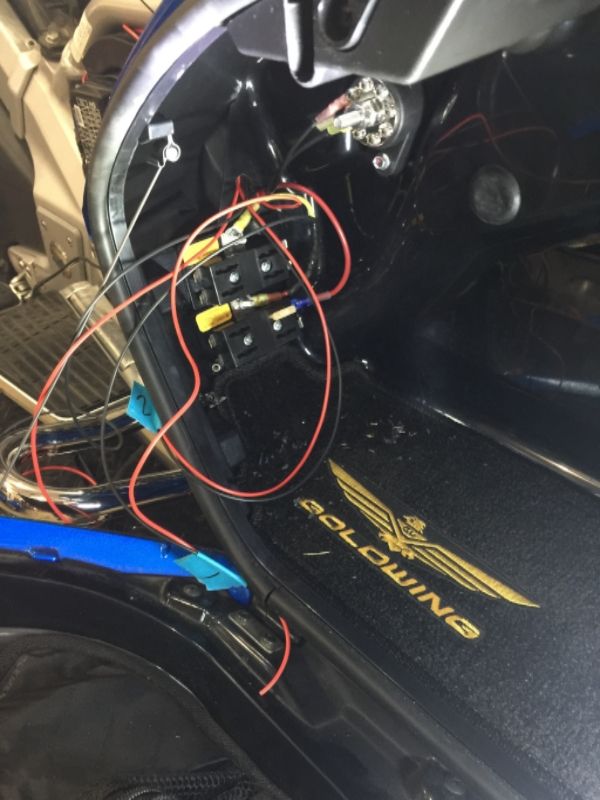

Started by mounting 2 Buss 4-circuit fuse panels and a ground block (Summit Racing) in the left saddle bag. Drilled into the front of the saddle bag where the bag is covered by the side cover and bolted the two fuse panels. The ground block was mounted to the rear of the saddle bag (self tapping screws). Drilled two more holes in the front of the saddlebag to run the wires to the battery and relay.

One fuse panel is always hot the other is keyed-hot. Used the following schematic to wire it up (last diagram on the page):

http://www.aumih.info/Tips/fuseblock.html

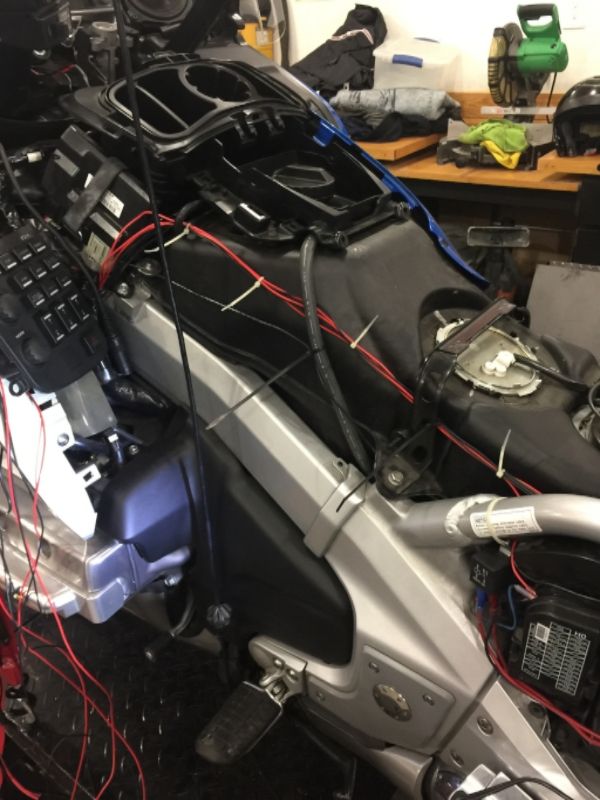

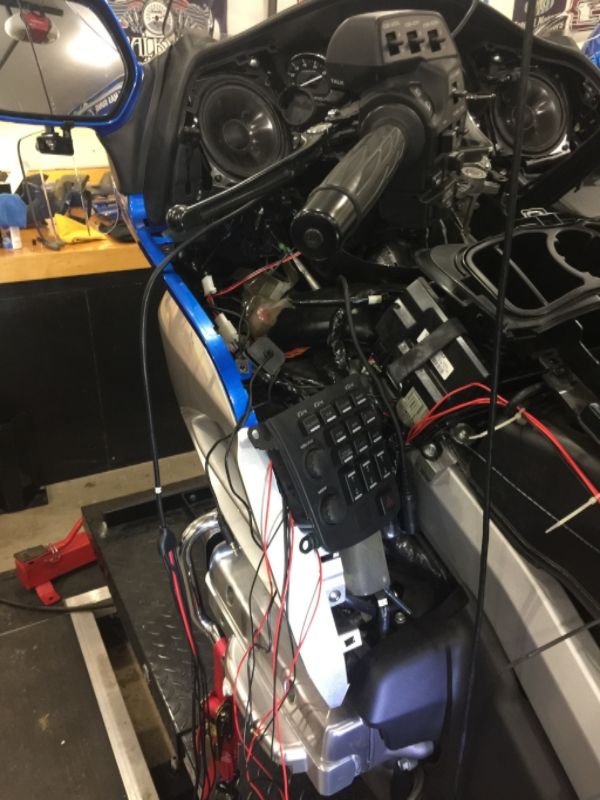

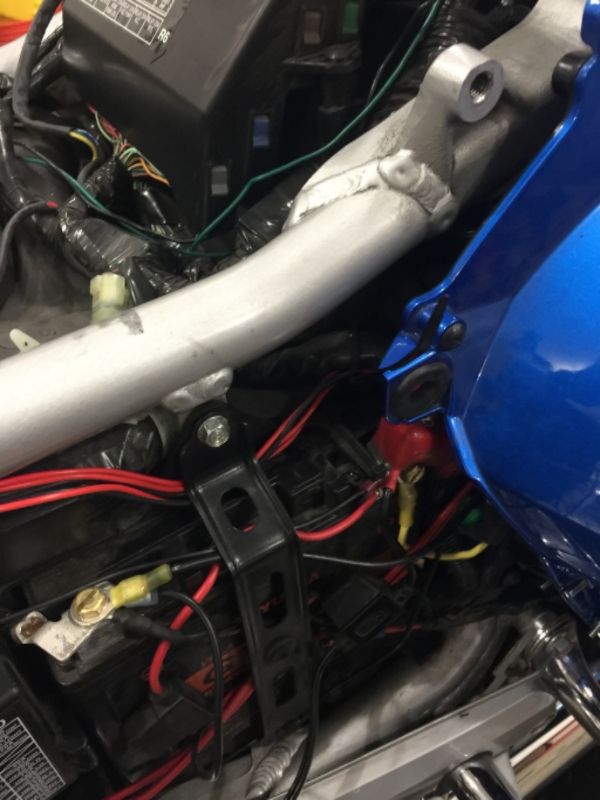

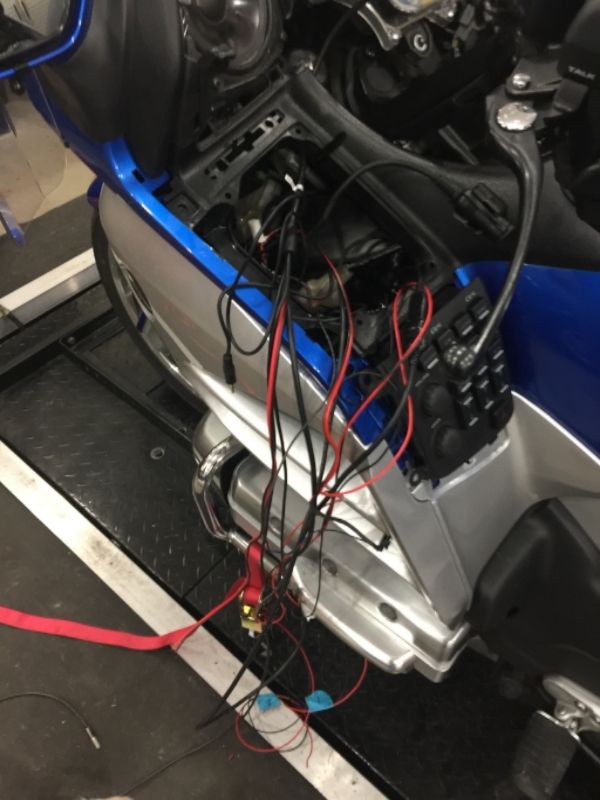

Ran 6 wires (3 hots and 3 grounds) up to the area under the left storage box. One set for the Zumo, one for a GPS puck that works with the scanner, and one for an AmpliRider multiple input amplifier.




What a mess!!!!

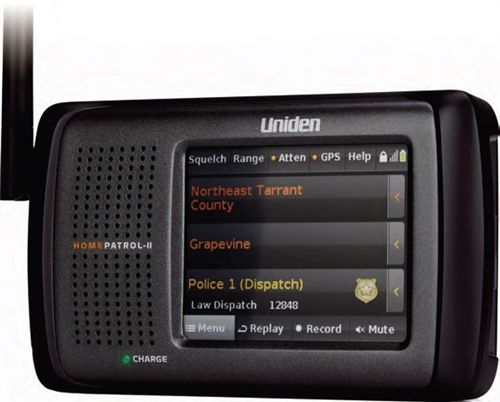

Chose a Uniden Homepatrol police scanner because of its size and ease of use (when riding). It has a touch screen interface and a big display for easy reading.




Even with these dimensions, mounting it where I wanted, on top of the glovebox, the handlebars would not clear at full lock. It was because of the holder. So I decided to to inlay the holder.

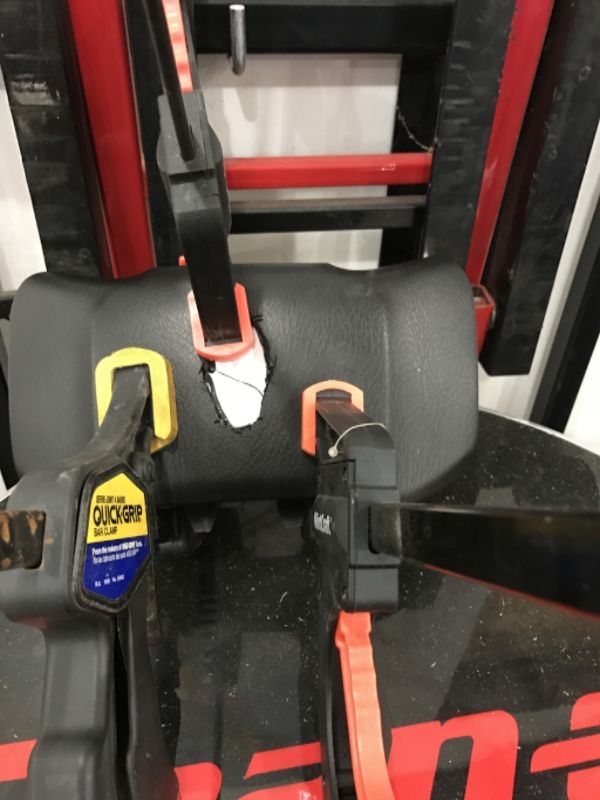

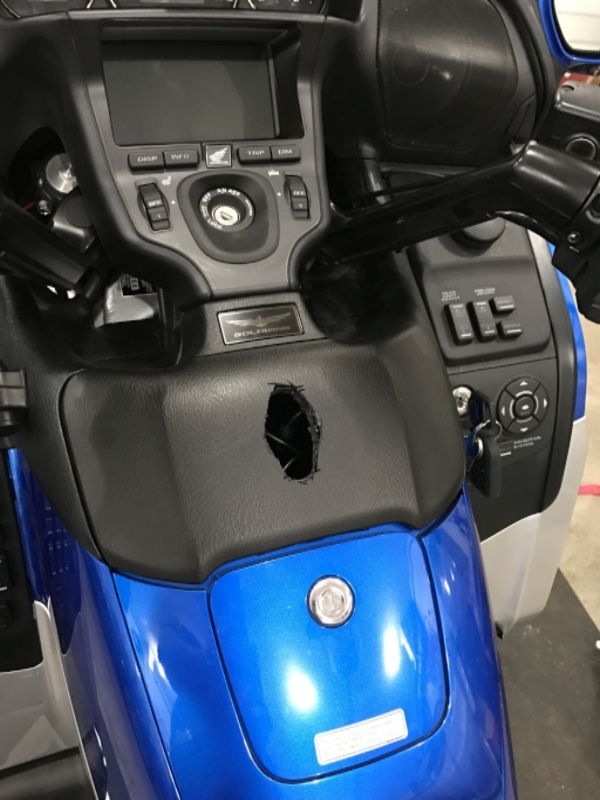

First thing I did was put the holder on a piece of paper, traced out the mount base, and then taped it to the center of the glovebox lid. Then just started hacking at the lid with a Dremel to cut the diamond shape needed.

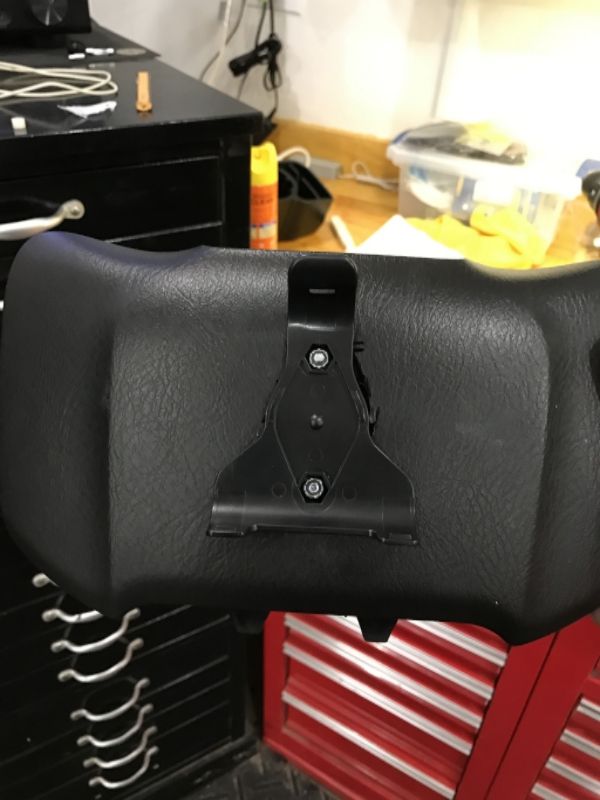

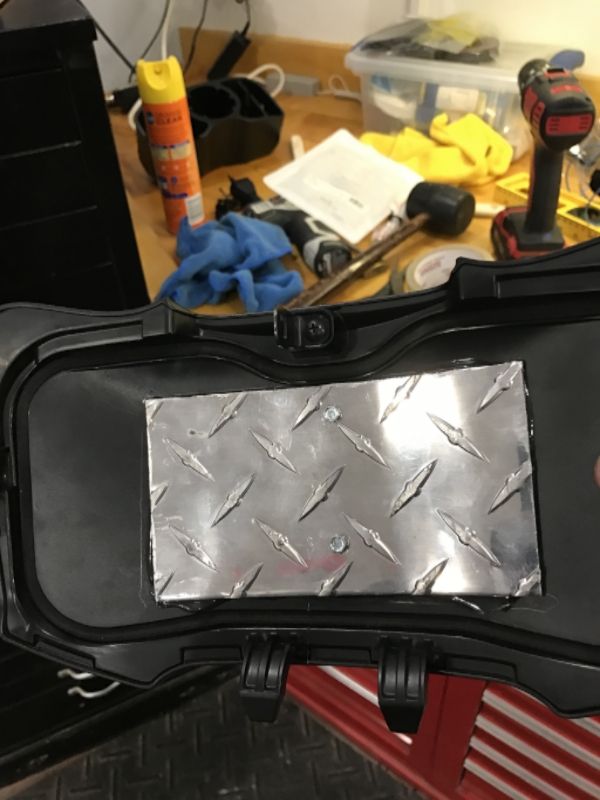

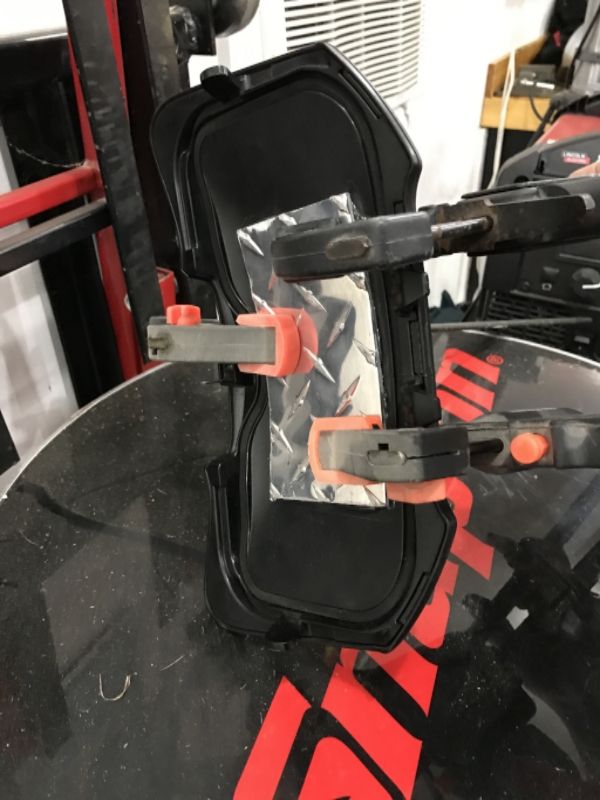

The holder fit perfectly in the hole, but I still needed something to bolt the holder to. Decided to cut and JB Weld a piece of aluminum to the inside of the glovebox lid and then drilled and and bolted on the holder.

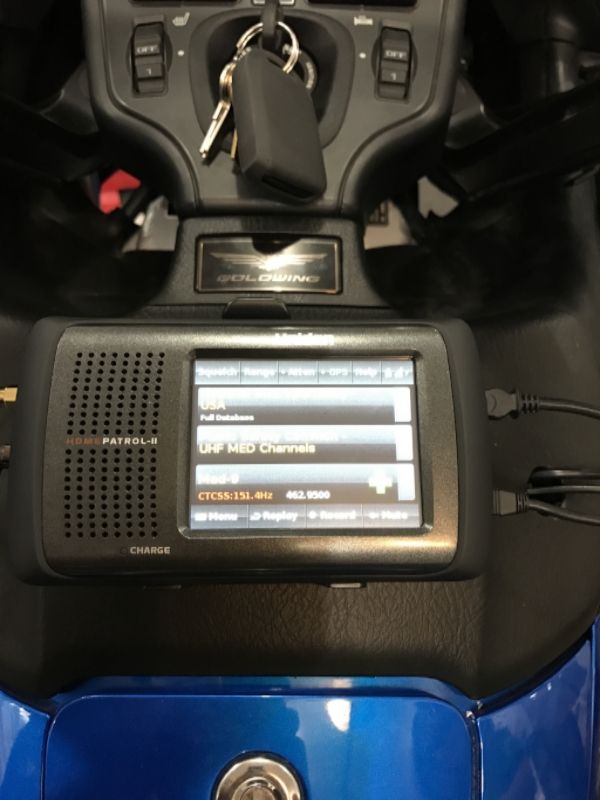

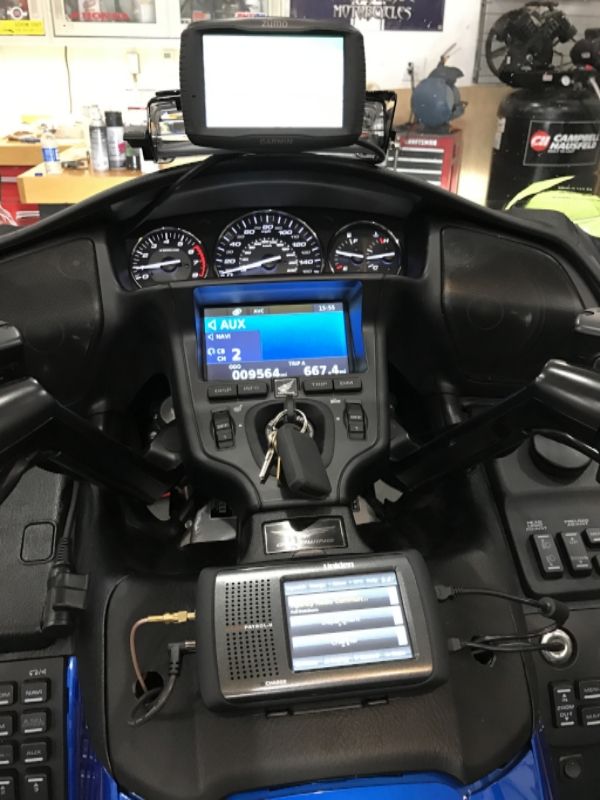

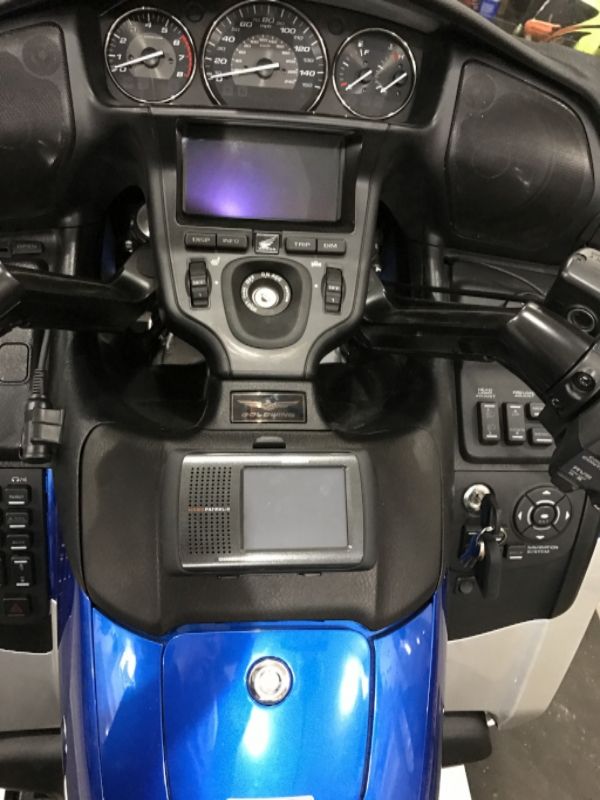

This is how it ended being mounted and I have about 1/4" clearance with the handle bars as full lock.

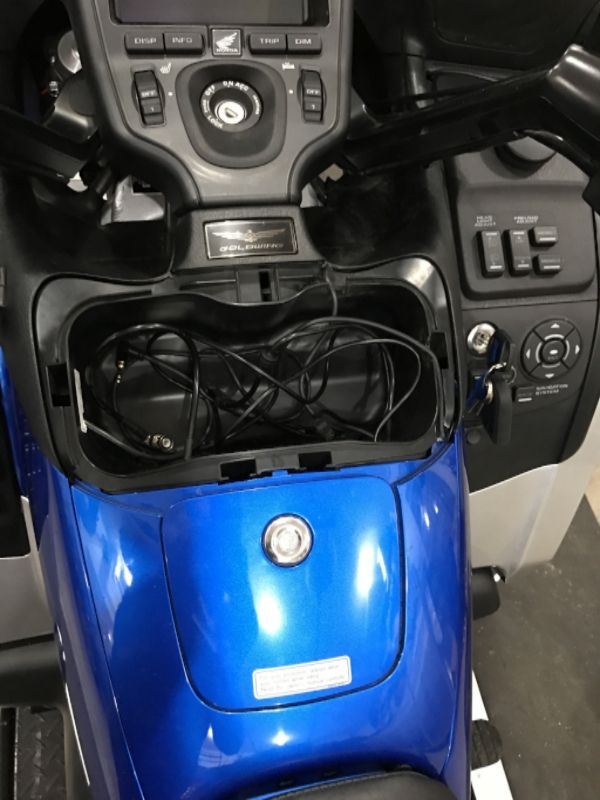

Ran a USB power cable from the left box (plugged into the Zumo harness for power), a 3.5mm audio cable from the left box, an antenna wire (scanner antenna mounted on trunk), and the GPS puck from the right cover to the glovebox.




Drilled two 3/4" holes through the glovebox lid on each side of the scanner to pass the wires. Have rubber plugs that will plug the holes when it rains and I put the scanner in the glovebox to keep it from getting wet.

Also if you look in the upper right of the picture below you will see GPS puck that I 3M taped to the right side cover. The scanner reads your position via the GPS puck and changes the frequencies in the scanner for the area that you are in. The scanner has an SD card in it with all the public safety radio frequencies in the US & Canada.





Then it was as simple as plugging the 3.5mm audio cable from the scanner and the Zumo into the AmpliRider inputs and and AUX plug to the Wing into the AmpliRider's output. Now, I adjust the volume of the MP3s coming from the Zumo, the voice from the Zumo, and the scanner volume, and I hear all three through the speakers or headset.

Also put ground loop isolators on the AUX circuit and power circuit under the left box. Also a edsets mic-splitter so I can interface with my iPhone via the Zumo.

All in all not a bad job as long as you keep track of the 364 wires going all over the place!


·
